v2.4 AB Motors Mounts

Sale price$45.00
Color:Black
Secondary Color:Red
Bearings:None
Quantity:

Description

Machined out of 6061 aluminum, 5mm thick mounts add rigidity to the gantry and help to cool down motors.

  • Stainless steel pins are used for all motion elements, no M5 bolts anymore
  • 5mm 6061 aluminum is perfect to cool down motor during work
  • Many accent colors are available

Contents

  • 4 aluminium parts
  • 4 precision steel pins
  • 8 FSHCS M3x8mm bolts
  • 6 SHSC M3x35 bolts
  • 6 Cup Washers
  • 6 M3x20 spacers
  • 2 M5x10 spacers

Required items from printed set

  • M5 bolts
  • M5 shims
  • Bearings
  • Belt Clamps

Printable Addons

Customer Reviews

Based on 3 reviews
100%
(3)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
J
Joe
These mounts are excellent

These mounts are excellent, Vitalii is a true craftsman, and his attention to detail shows through in his products, you simply won't find this level of quality in CNC parts coming from China, and at the price he offers them at why even bother entertaining alternatives, there is a reason why the overseas copycats keep stealing his designs!

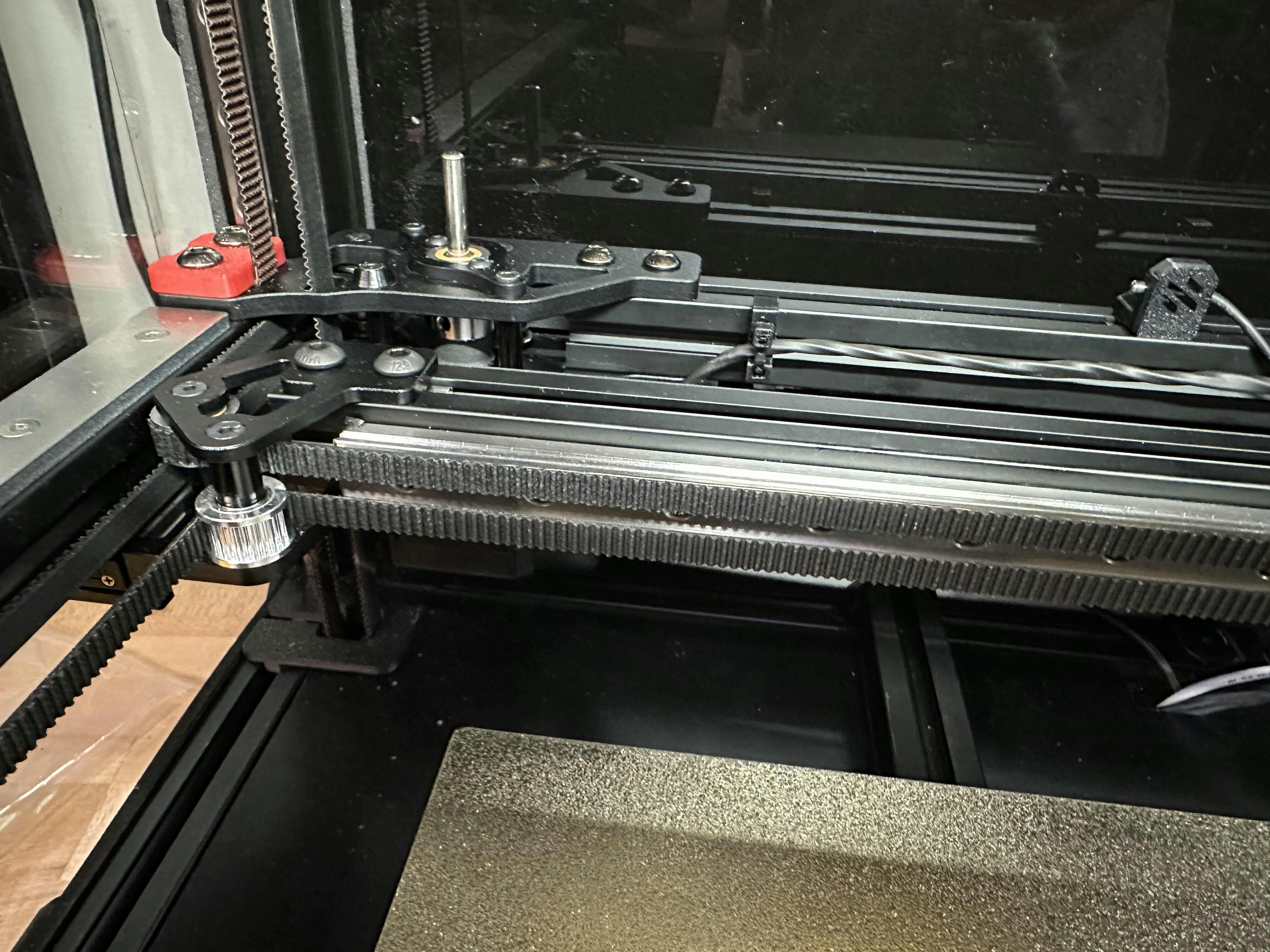

From a mechanical standpoint, these motor mounts are well-designed direct replacements for the stock voron 2.4 mounts, and are true to the original dimensions as well, requiring no other modifications to your gantry geometry to use. I had read to "beware of CNC parts that look like they just took the original design and tried CNCing it", and although Vitalii keeps nearly all dimensions stock to thevoron design, in the case of the A/B mounts it makes sense to do so (his XY joints and front idlers are great examples of where it didn't make sense to). Also, as others may have mentioned already, squaring your gantry becomes quite a bit easier with these mounts than with all the play that comes with the stock ABS printed parts.

Although naysayers are quick to tell you that "yOu DoN't NeEd CnC pArTs, It'S jUsT fOr ShOw", that is not necessarily true -- for my setup I did the whole gantry with Vitalii's parts with the following two design drivers:
1) I recently began cranking up chamber temps, and the stock ABS parts were starting to get a little too far out of compliance after several hours of printing
2) I made the switch to GT3 belts which require much higher tension than the stock GT2 belts, too much for both the stepper shafts (I switched to long shaft steppers and added the double shear retainers) and far too much for the stock ABS parts especially at the temps I have been printing at lately

T
Thomas
Great machining and tolerances ceramic bearings are super smooth as well

Great machining and tolerances ceramic bearings are super smooth as well. Shipping was fast.

S
Sean B.
Top notch!

Parts fit like a glove. Fit and Finish of everything was top notch. Custom anodizing was spot on. I couldn’t be happier with the parts.

Can’t wait to see what you release next. Will definitely be purchasing more in the future.
