DoubleT Aluminum Gantry for Voron Trident (flat version)

Description

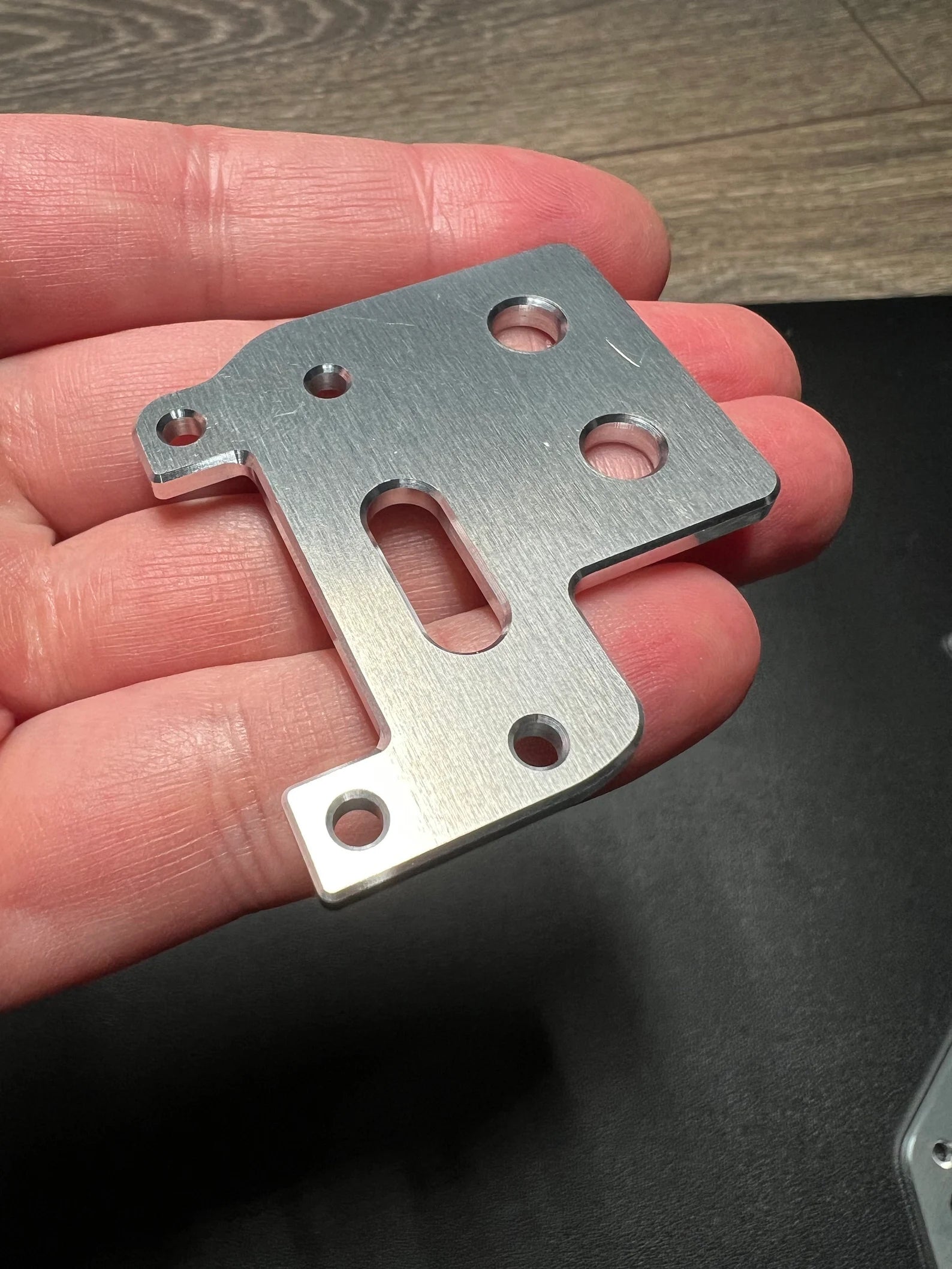

Machined from 3mm thick aluminium sheet metal. Provides rigidity for parts and extra cooling for motors. Slightly modified to use pins on AB motors plates.

GitHub with CAD and other information.

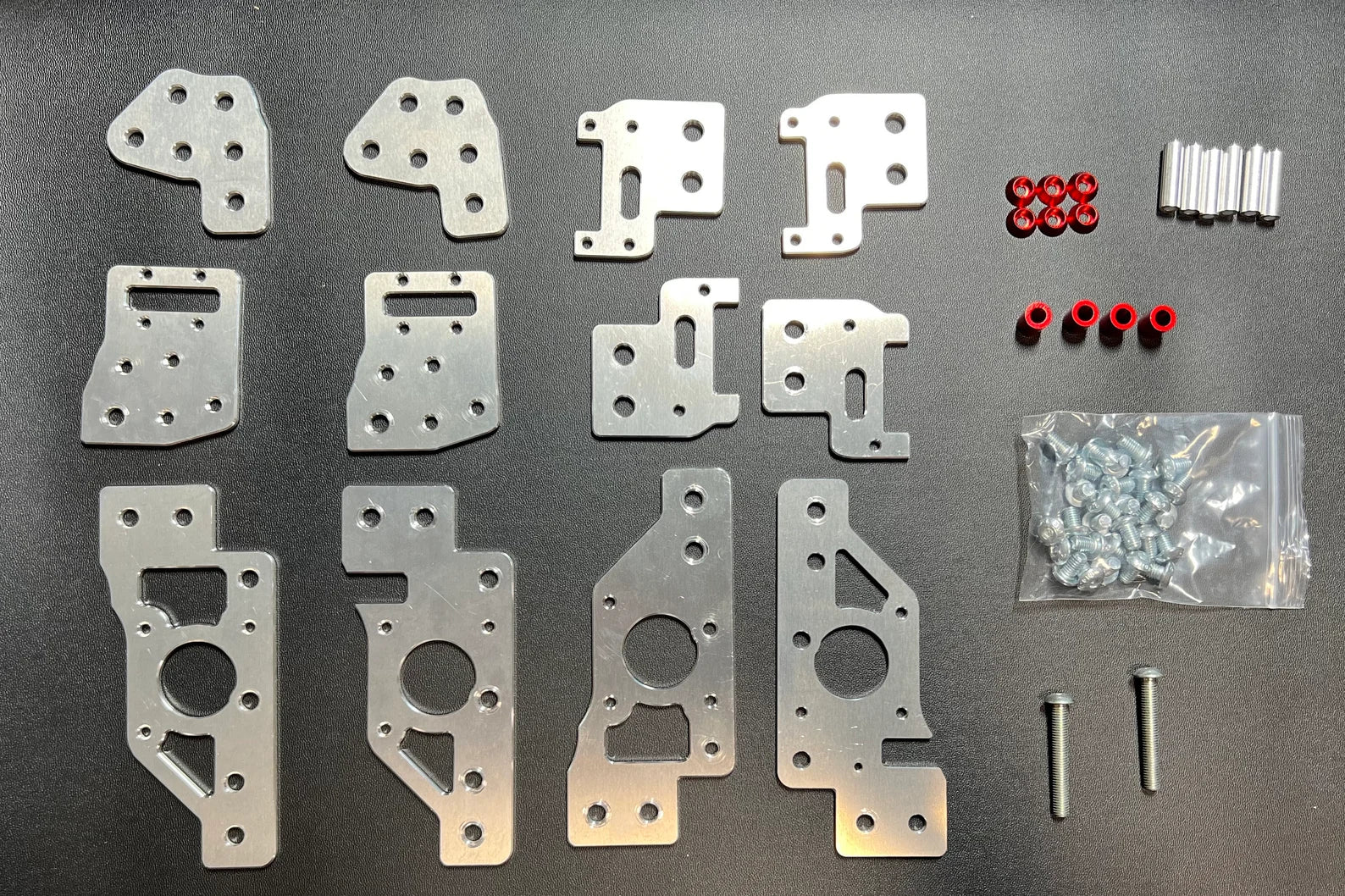

Contents of Full Kit

• AB Motors Kit
• XY Joints Kit
• Tensioners Kit

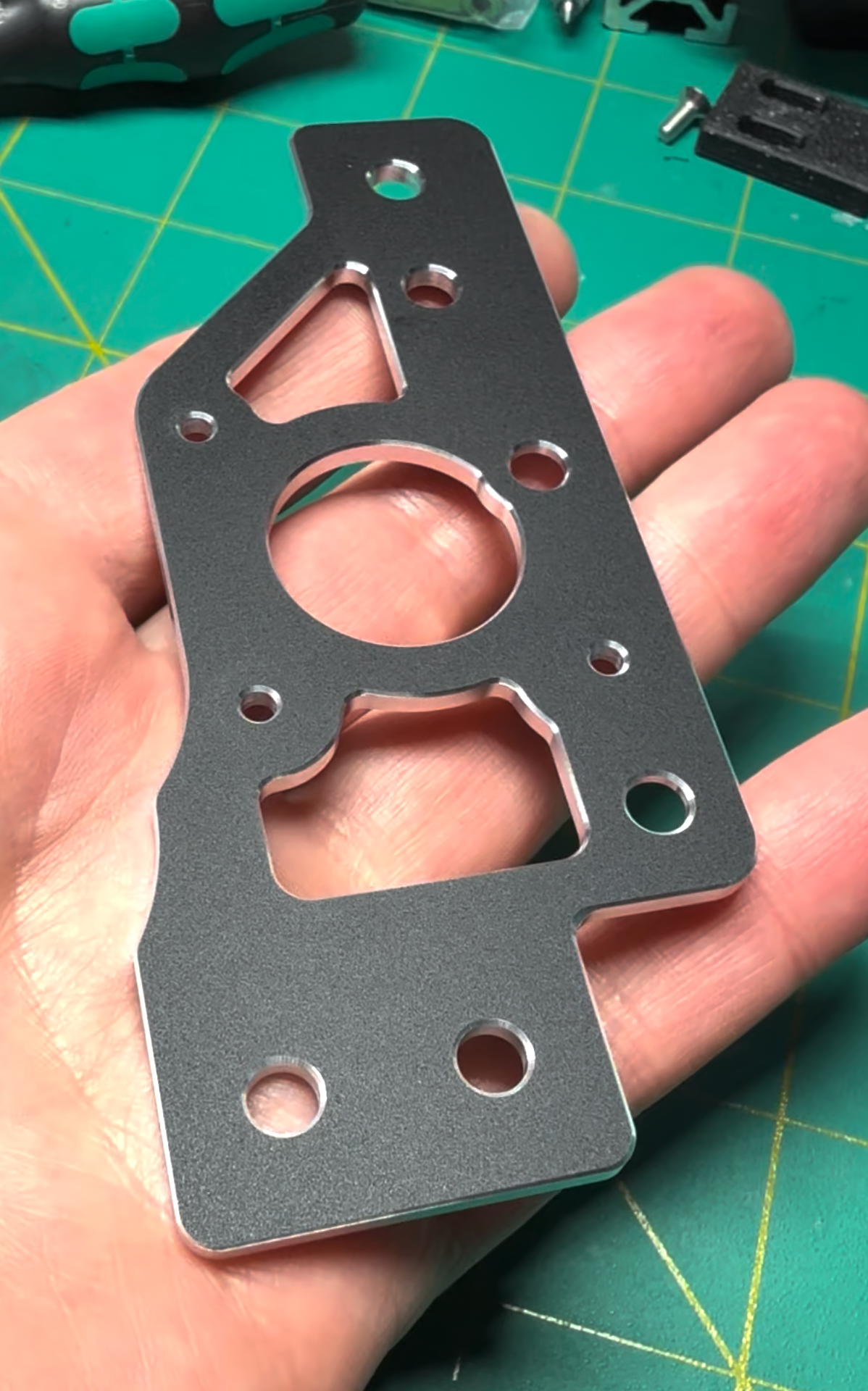

AB Motors Kit

• 4 alumninium parts
• 4 precision steel pins
• 8 FSHCS M3x8mm bolts
• 6 SHSC M3x35 bolts
• 6 Cup Washers
• 6 M3x20 spacers
• 2 M5x10 spacers
• 16 BHSCS M5x8 bolts

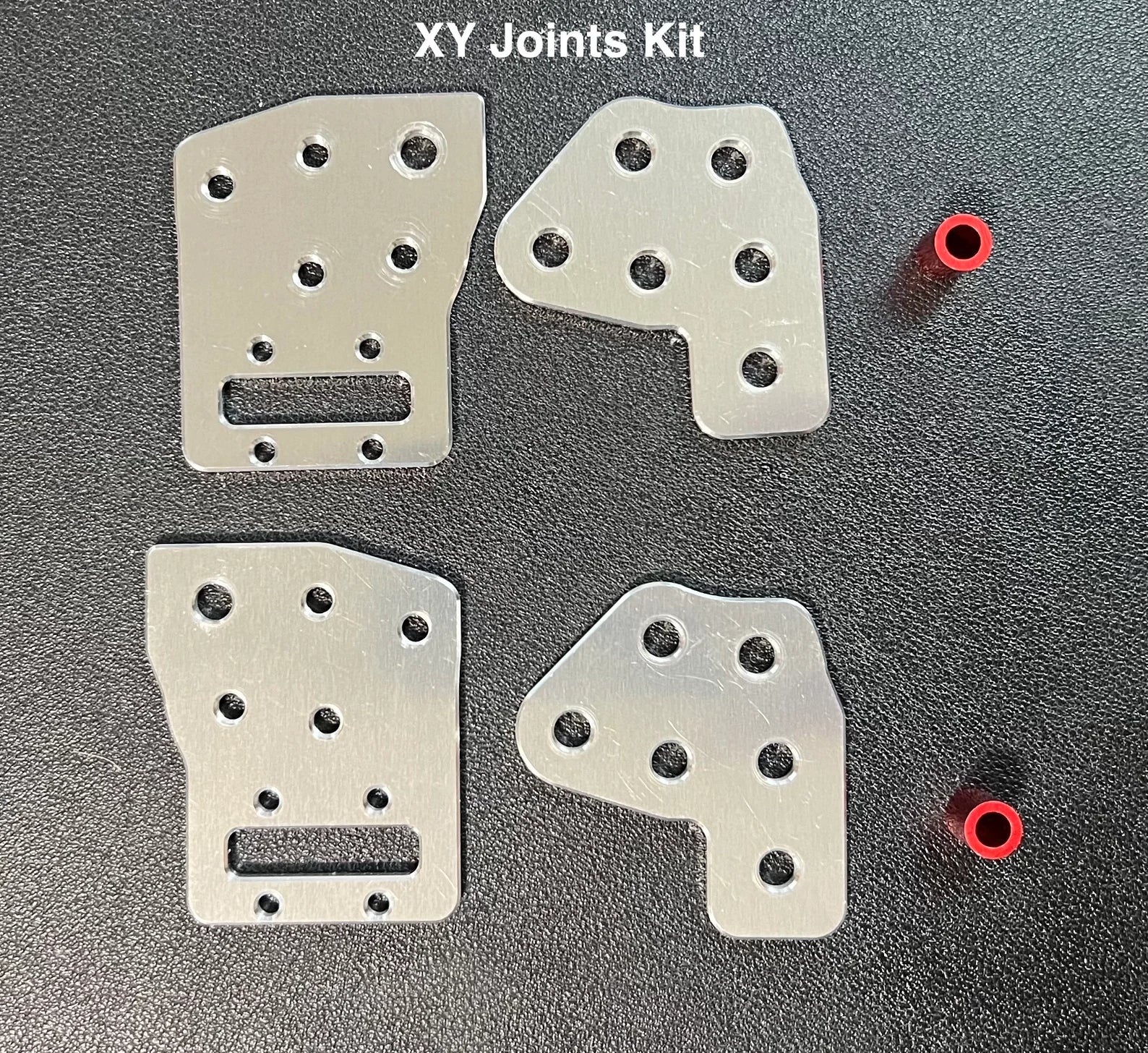

XY Joints Kit

• 4 alumninium parts
• 2 M5x10 spacers
• 4 M5x1mm shims
• 4 M5x0.5mm shims
• 6 BHSCS M5x8 bolts

Tensioners kit

• 4 alumninium parts
• 2 M5x10 spacers
• 8 BHSCS M5x8 bolts

Printed Parts: https://github.com/3DPrintingMods/VoronTrident-AluminumG/tree/master/STLs/6mm_belt_laser
Author: https://github.com/thiagolocatelli
