Double Shear Trident AB Motors Mounts

Description

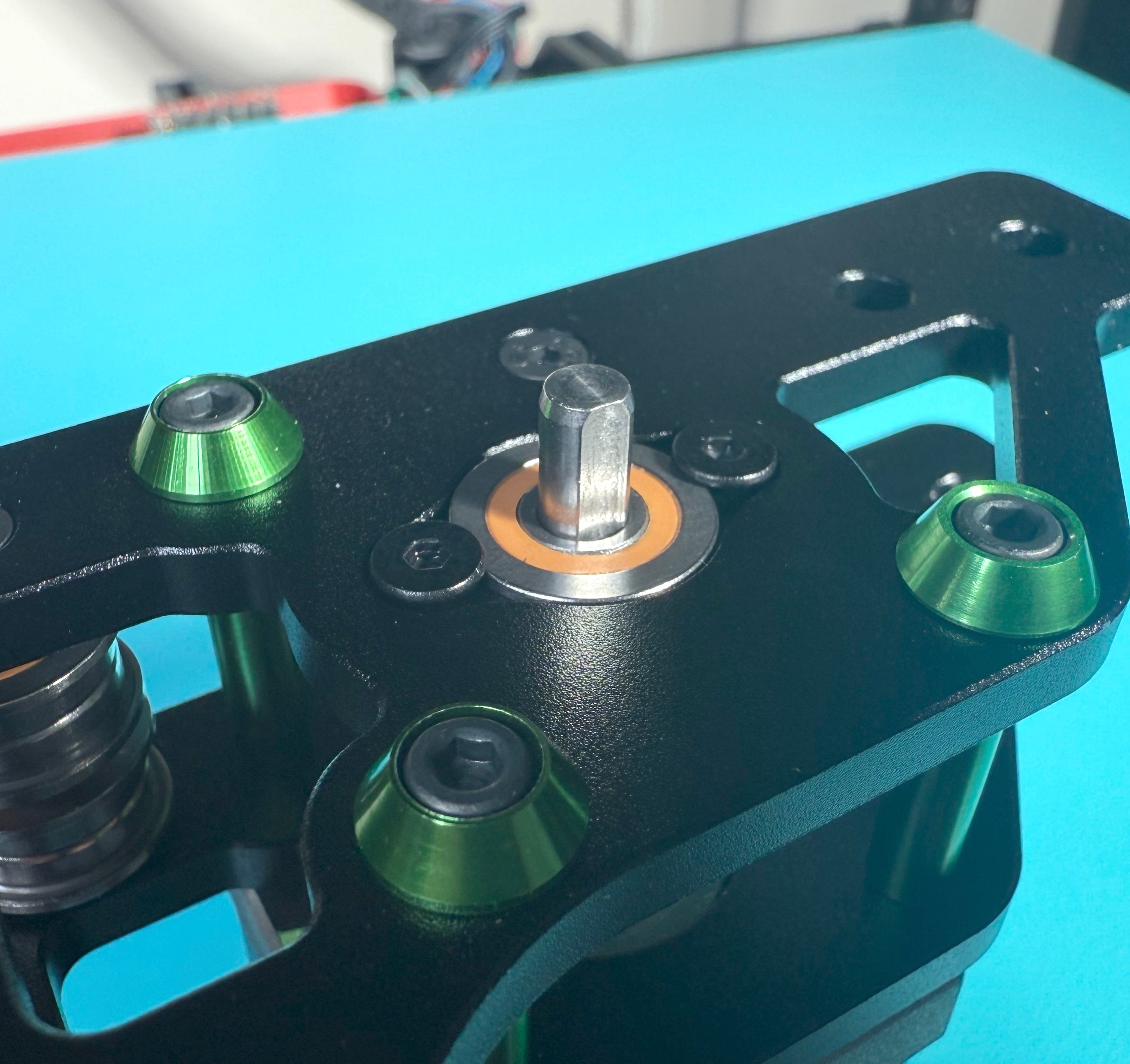

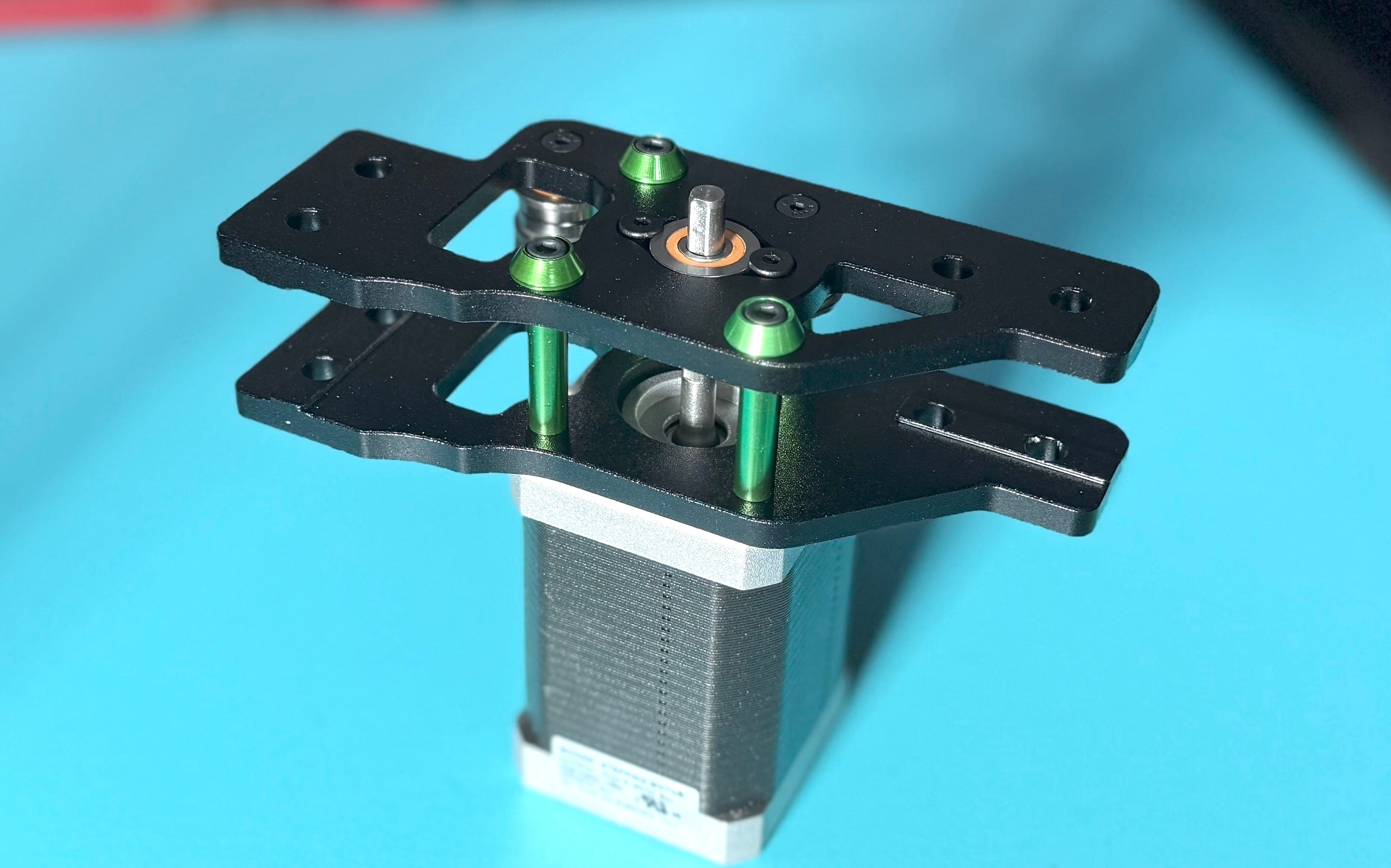

Machined out of 6061 aluminum, 5mm thick mounts add rigidity to the gantry and help to cool down motors. Designed to provide extra support to motor shaft using F695 bearing.

• Stainless steel pins are used for all motion elements, no M5 bolts anymore
• Double shear to support extra tension
• 5mm 6061 aluminum is perfect to cool down motor during work
• Many accent colors are available

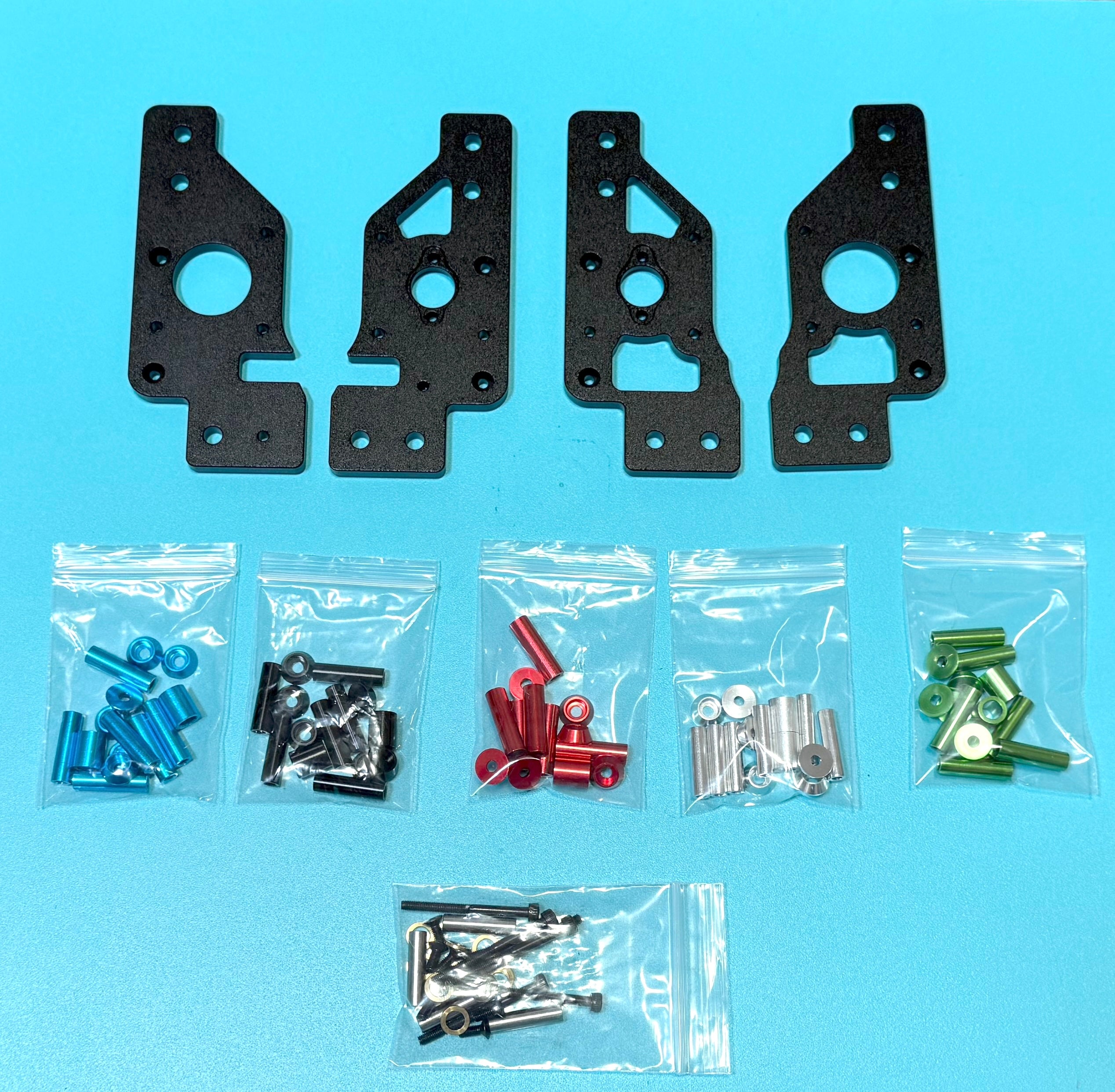

Contents

• 4 aluminium parts
• 4 precision steel pins
• 8 FSHCS M3x8mm bolts
• 6 SHSC M3x35 bolts
• 6 Cup Washers
• 6 M3x20 spacers
• 2 M5x10 spacers
• OPTIONAL Bearings 14pcs

Required items from printed set

• M5 bolts
• Bearings
